Shallow groove sorting machine
.jpg "1(14).jpg")

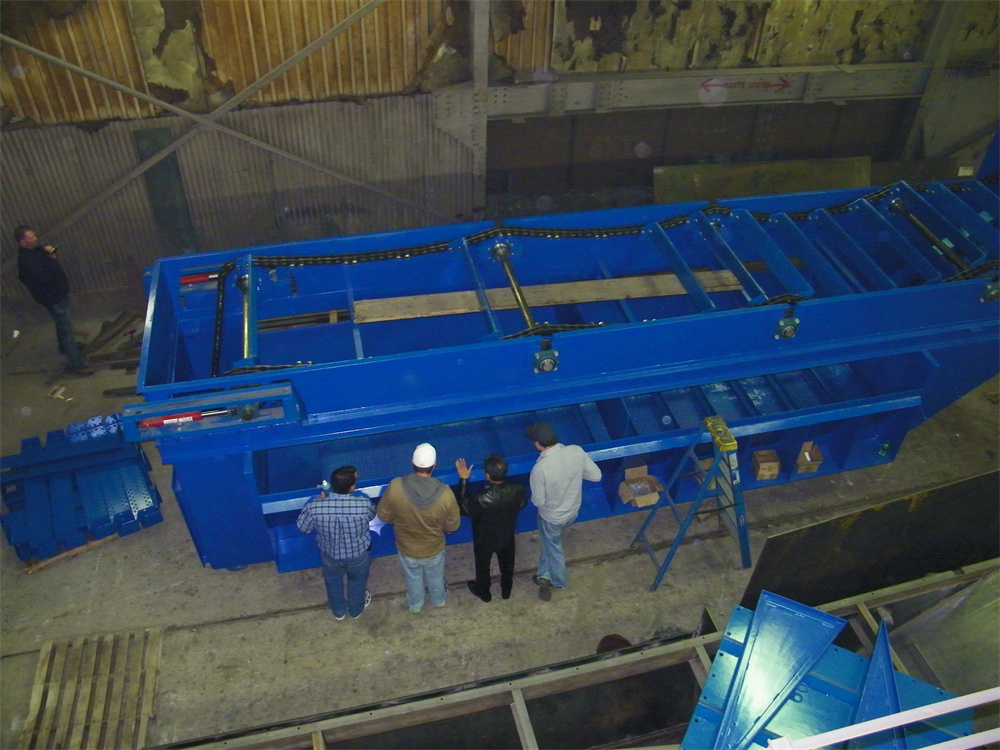

? Daniels, USA - the world's largest heavy medium shallow trough sorting machine
With a long history of nearly 70 years, our products are spread all over the world, and we have the world's largest heavy medium shallow groove sorting machine. Compared with similar products at home and abroad, Dennis shallow groove has its unique advantages. The upstream design prevents the occurrence of media layering and the accumulation of materials with adjacent sorting densities; The precise control of medium density enables precise sorting based on material density; In addition, the use of gentle washing method minimizes the production of secondary coal slurry; Dennis Shallow Tank is capable of sorting raw coal with a feed particle size of 1/4-8 inches (6-200mm). The design of Dennis shallow groove is simple and easy to operate.
The advantages of Dennis shallow groove
The bottom plate liner can be made of various wear-resistant steel or other coverings
Detachable bottom plate
Standard alloy cast iron chain plate guide rail
Standard special alloys and chrome plated chains
Ceramic lining can be used in the medium feeding area
Standard rear maintenance port
Standard special alloy steel and chrome plated chains
L can meet the requirements for normal, overloaded, and overloaded conditions
See Excel spreadsheet: Shallow groove selection table.
The following information is for reference only. Please call to inquire about specific selection information.
| 型號# *(尺寸) | **額定煤給料量 | ***額定矸石處理量 8英寸刮板 | 淺槽介質流量 | 典型電機 及驅動 | 近似總長度 | |||||
| 短噸/小時 | 噸/小時 | 短噸/小時 | 噸/小時 | 加侖/分鐘 | 立方米/小時 | 馬力 | 千瓦 | 英尺 | 米 | |
| T-4048 | 100.0 | 90.0 | 200.0 | 180.0 | 1040.0 | 235.0 | 10.0 | 7.5 | 17.0 | 5.2 |
| T-4054 | 100.0 | 90.0 | 250.0 | 225.0 | 1040.0 | 235.0 | 10.0 | 7.5 | 17.0 | 5.2 |
| T-6048 | 150.0 | 135.0 | 200.0 | 180.0 | 1560.0 | 355.0 | 10.0 | 7.5 | 19.0 | 5.8 |
| T-6054 | 150.0 | 135.0 | 200.0 | 180.0 | 1560.0 | 355.0 | 10.0 | 7.5 | 19.0 | 5.8 |
| T-8048 | 200.0 | 180.0 | 200.0 | 180.0 | 2080.0 | 470.0 | 10.0 | 7.5 | 21.0 | 6.4 |
| T-8054 | 200.0 | 180.0 | 250.0 | 225.0 | 2080.0 | 470.0 | 10.0 | 7.5 | 21.0 | 6.4 |
| T-10048 | 250.0 | 225.0 | 200.0 | 180.0 | 2600.0 | 590.0 | 10.0 | 7.5 | 23.0 | 7.0 |
| T-10054 | 250.0 | 225.0 | 250.0 | 225.0 | 2600.0 | 590.0 | 10.0 | 7.5 | 23.0 | 7.0 |
| T-12048 | 300.0 | 275.0 | 200.0 | 180.0 | 3120.0 | 710.0 | 10.0 | 7.5 | 25.0 | 7.6 |
| T-12054 | 300.0 | 275.0 | 250.0 | 225.0 | 3120.0 | 710.0 | 10.0 | 7.5 | 25.0 | 7.6 |
| T-14048 | 350.0 | 320.0 | 200.0 | 180.0 | 3640.0 | 825.0 | 15.0 | 11.0 | 27.0 | 8.2 |
| T-14054 | 350.0 | 320.0 | 250.0 | 225.0 | 3640.0 | 825.0 | 15.0 | 11.0 | 27.0 | 8.2 |
| T-16048 | 400.0 | 365.0 | 200.0 | 180.0 | 4160.0 | 945.0 | 15.0 | 11.0 | 29.0 | 8.8 |
| T-16054 | 400.0 | 365.0 | 250.0 | 225.0 | 4160.0 | 945.0 | 15.0 | 11.0 | 29.0 | 8.8 |
| T-16060 | 400.0 | 365.0 | 300.0 | 275.0 | 4160.0 | 945.0 | 15.0 | 11.0 | 29.0 | 8.8 |
| T-18048 | 450.0 | 410.0 | 200.0 | 180.0 | 4680.0 | 1060.0 | 15.0 | 11.0 | 31.0 | 9.5 |
| T-18054 | 450.0 | 410.0 | 250.0 | 225.0 | 4680.0 | 1060.0 | 15.0 | 11.0 | 31.0 | 9.5 |
| T-18060 | 450.0 | 410.0 | 300.0 | 275.0 | 4680.0 | 1060.0 | 15.0 | 11.0 | 31.0 | 9.5 |
| T-20048 | 500.0 | 455.0 | 200.0 | 180.0 | 5200.0 | 1180.0 | 20.0 | 15.0 | 33.0 | 10.1 |
| T-20054 | 500.0 | 455.0 | 200.0 | 180.0 | 5200.0 | 1180.0 | 20.0 | 15.0 | 33.0 | 10.1 |
| T-20060 | 500.0 | 455.0 | 250.0 | 225.0 | 5200.0 | 1180.0 | 20.0 | 15.0 | 33.0 | 10.1 |
| T-22048 | 550.0 | 500.0 | 200.0 | 180.0 | 5720.0 | 1300.0 | 20.0 | 15.0 | 35.0 | 10.7 |
| T-22054 | 550.0 | 500.0 | 250.0 | 225.0 | 5720.0 | 1300.0 | 20.0 | 15.0 | 35.0 | 10.7 |
| T-22060 | 550.0 | 500.0 | 300.0 | 275.0 | 5720.0 | 1300.0 | 20.0 | 15.0 | 35.0 | 10.7 |
| T-24048 | 600.0 | 545.0 | 200.0 | 180.0 | 6240.0 | 1415.0 | 20.0 | 15.0 | 37.0 | 11.3 |
| T-24054 | 600.0 | 545.0 | 250.0 | 225.0 | 6240.0 | 1415.0 | 20.0 | 15.0 | 37.0 | 11.3 |
| T-24060 | 600.0 | 545.0 | 300.0 | 275.0 | 6240.0 | 1415.0 | 20.0 | 15.0 | 37.0 | 11.3 |
| T-26048 | 650.0 | 590.0 | 200.0 | 180.0 | 6760.0 | 1535.0 | 30.0 | 22.0 | 39.0 | 11.9 |
| T-26054 | 650.0 | 590.0 | 250.0 | 225.0 | 6760.0 | 1535.0 | 30.0 | 22.0 | 39.0 | 11.9 |
| T-26060 | 650.0 | 590.0 | 300.0 | 275.0 | 6760.0 | 1535.0 | 30.0 | 22.0 | 39.0 | 11.9 |
| T-30054 | 682.0 | 750.0 | 250.0 | 225.0 | ||||||

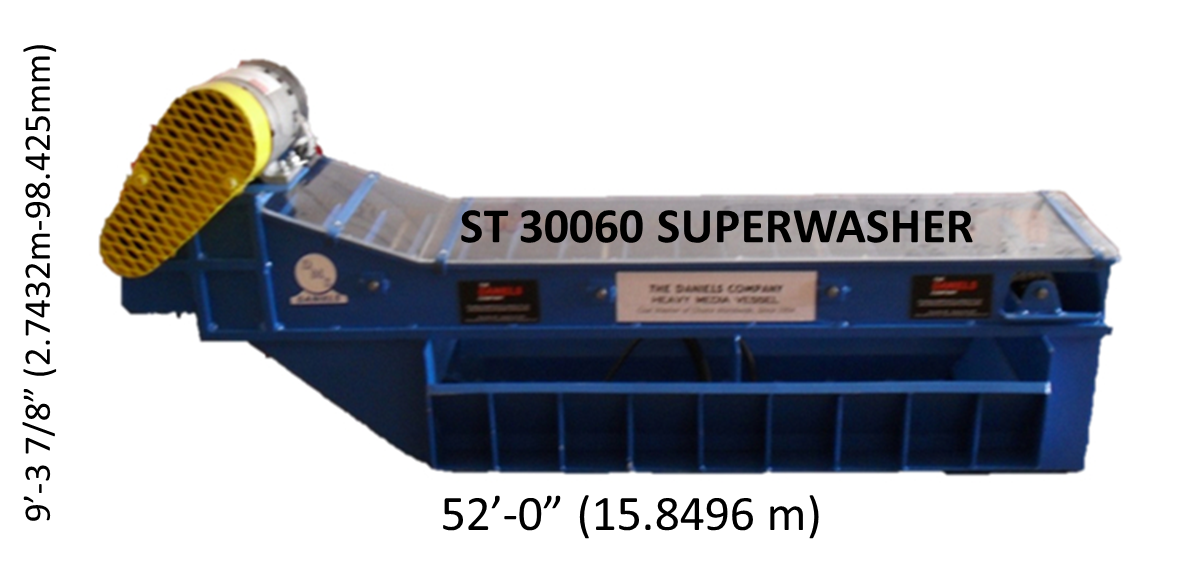

| T-30060 | 682.0 | 750.0 | 300.0 | 275.0 | ||||||
注：
*型號中的數字指代尺寸。例如：T-26054指溢流堰寬為26英尺0英寸，刮板為54英寸。
**額定處理量取決于物料及其分選粒度。
***如果增大刮板，或者做些其他調整，矸石處理量也會隨之增大。
